Description

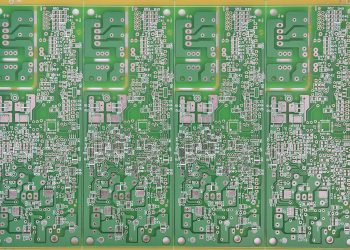

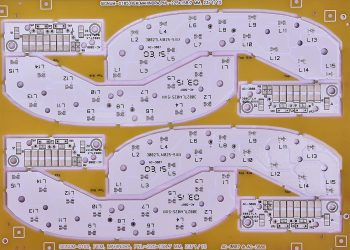

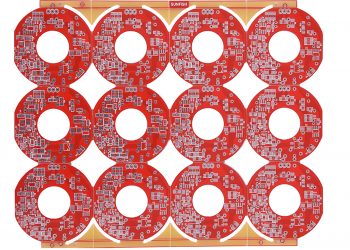

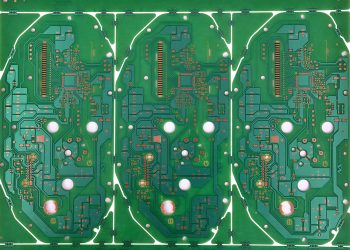

SINGLE SIDED PCBS
Production Capacity :- 12000 sqm / month
Sector Catered : Automotive, Lighting, Industrial Electronics, Home Appliances, Railways, Power Electronics, Automation, Storage Devices, Solar Systems..
SINGLE SIDED PCBS
| PRODUCTION CAPABILITY | |
| Type of Laminates | FR-4, FR-4 (High TG), CEM-1, CEM-3, FR-1, Arlon (RF) |
| Laminate Thickness | 0.2 to 3.2 (mm) |
| Finish Copper Thickness | Up to 210 microns |
| Maximum PCB Size | 1200 mm x 500 mm |
| Minimum Track Width | 0.10 mm ( 4 mil ) |
| Minimum Track Spacing | 0.10 mm ( 4 mil ) |
| Minimum Hole Diameter | 0.15 mm |
| Hole/ Outer Profile | CNC Drilling & CNC Routing, Punching & Blanking |
| Surface Finishing | ENIG, Gold Plating (Hard Gold), Lead Free HASL, HASL, Lacquer. |
| Special Finishes | Carbon Printed Contacts, Peelable Mask. |
| Specifications. Standards | IPC-A-600, IPC-SM-840, IPC-RB-276, IPC-TM-650 |
| Reports | PDIR, Microsection, Solderability, FAI (First Article Inspection), PPAP Documents (On specific request) |
| System Approvals | IATF 16949:2016, ISO 9001:2015, UL Certified, ROHS
Compliance |
